Ring Jewel Bearing Assemblies -

RS-435-EO

Specifications

ModelRS-435-EO
Inside Diameter.0625/.0627"
Outside Diameter#1/4-20Screw
Length.440"
Material316 Stainless Steel

Ring Jewels can be mounted into bushings or screws. This style can ease your mounting of the bearing into your final instrument. A ring jewel can be mounted into a plain bushing or into a screw to be coupled with an endstone. To assist with fine tuning assembly for load applications Ring Jewel Assemblies can also be mounted with or without a spring. Applications include Flow Meters, Gauges, Meters, Indicators, Aircraft Instruments, Gyros and Watches Model Code:  B=Bombe,  C=Cup,  O=Olive,  E=Endstone

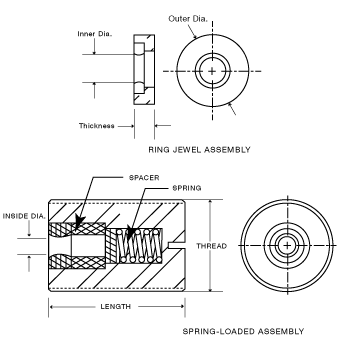

Swiss Jewel Sapphire Ring Jewel Assemblies Diagram

Not seeing exactly what you need?

We at the Swiss Jewel Company specialize in creating a wide range of custom optical components and custom mechanical components including a variety of shapes - from internal holes and tapers to outer flanges, angles and surface finishes. Contact us and we will consult with you to create a custom component that meets all of your specifications.

Ring Jewel Bearing Assemblies

$12.20

*Quantity discount pricing will be reflected in cart.
Quantity Price
1 - 10$12.20
11 - 49$9.55
50 - 99$8.40
100 - 249$6.35
250 - 499$5.70
500+$5.00
Need more? For a quote on large or custom orders, please contact us.
