Ball Valve & Seat

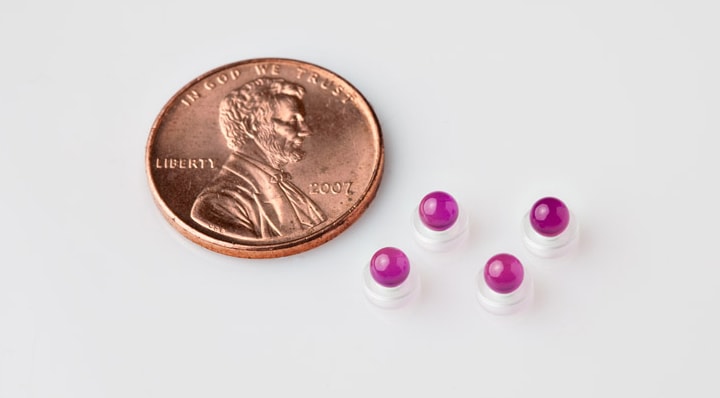

Sapphire Ball Seat for Check Valve

Sapphire Ball Seats are used as check valves in pumps. Using a Grade 5 sapphire or ruby ball in conjunction with the seat will provide a seal due to matching points of contact. Our stock sapphire seat matches with a 1/8″ diameter ball (Model No. B3.18S, B3.18R). Custom design is welcome.

Typical Applications: Liquid Chromatography, Flow Control

Model Inside Diameter Outside Diameter Thickness Ball Diameter
SP-140 .083/.087" .1775/.1805" .058/.062" .1250"

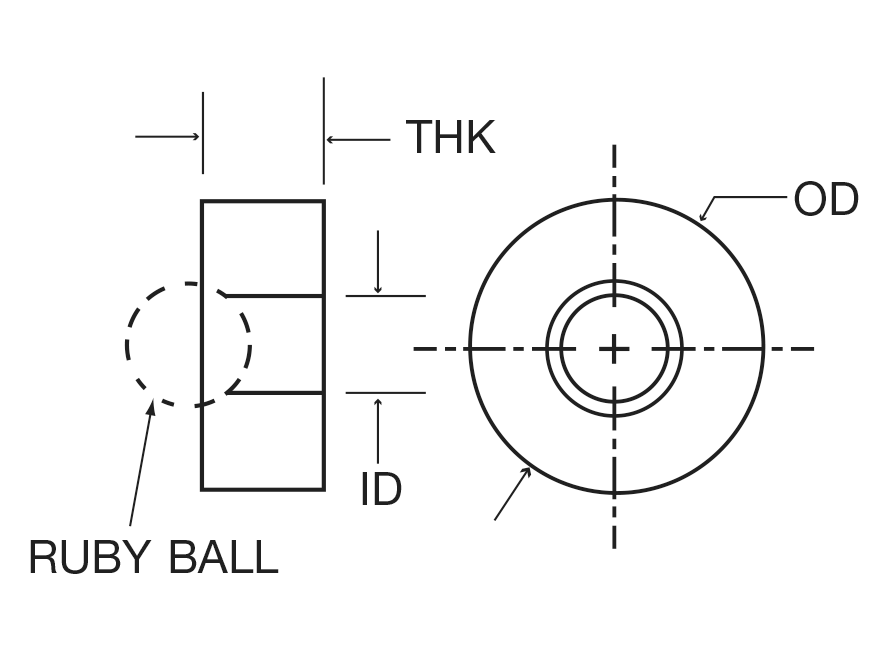

Sapphire Ball Seat Cross-Section
Swiss Jewel Ball Seat Diagram
