Swiss Jewel Blades

Sapphire Blades

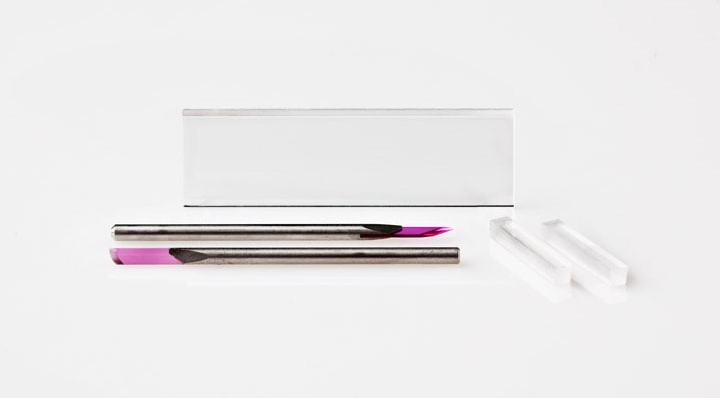

Sapphire Blades are an excellent choice for various applications. Sapphire’s hardness and excellent surface finish provide a superior surface for precision work. Sapphire blades are commonly used on fiber optics for cutting and scribing. Sapphire is also a non-thrombogenic material for use in surgical applications.

Typical Applications: Fiber Optic Scribes, Tape Cleaners, Surgical Knives

Model Length Width Angle Height Material
SP-98 .580/.605" .086/.100" 6/10 degrees .078/.092" Sapphire
SP-99 .725/.735" .145/.155" 2/5 degrees .028/.032" Sapphire

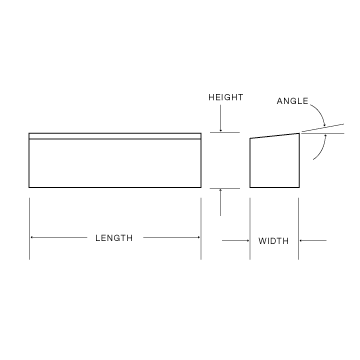

Sapphire Blade Diagram
Request Info

Contact

  • Attach file
  • * required

Not seeing exactly what you need?

We specialize in creating a wide range of custom optical components and custom mechanical components including a variety of shapes - from internal holes and tapers to outer flanges, angles and surface finishes. Contact us (800-922-0118) and we will consult with you to create a custom component that meets all of your specifications.
