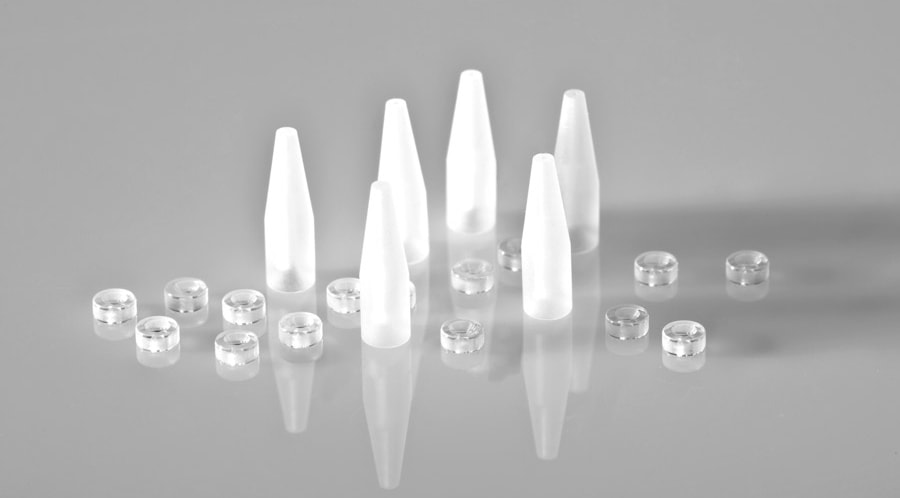

Sapphire Nozzles -

SP-162

Specifications

ModelSP-162
Inside Diameter.0195/.0210"
Length.302/.322"
Large O.D..051/.052"
Small O.D..035/.040"
TypeTapered OD sapphire nozzle

Sapphire Nozzles are used where a longer Inner Diameter to Length ratio is desired. Using sapphire nozzles will provide longer life than using metal and we can hold tighter tolerances due to sapphires acceptance of higher surface finish.

  • Gas & Air Flow
  • Wafer Jet Cutting & Cleaning
  • Ink Jet Printing

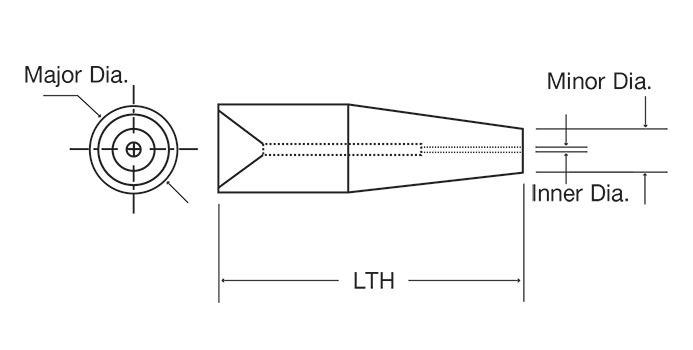

Swiss Jewel Nozzles Diagram

Not seeing exactly what you need?

We at the Swiss Jewel Company specialize in creating a wide range of custom optical components and custom mechanical components including a variety of shapes - from internal holes and tapers to outer flanges, angles and surface finishes. Contact us and we will consult with you to create a custom component that meets all of your specifications.

Sapphire Nozzles

$85.95

*Quantity discount pricing will be reflected in cart.
Quantity Price
1 - 10$85.95
11 - 49$79.90
50+$77.40
Need more? For a quote on large or custom orders, please contact us.
