Endstones

Endstones and Thrust Bearings

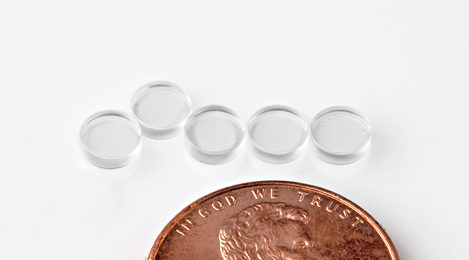

Endstones find wide use as a thrust bearing in combination with a ring jewel which serves as the annular bearing. The endstone may be mounted in the same housing with the ring jewel or mounted separately in an adjusting screw—especially when the end of the pivot extends beyond the radical bearing. Sapphire Pivot ends in both cases should be highly polished. Endstones are also used as spacers or insulators.

Model Outside Diameter Thickness Type
E0.82 .0331/.0335" .0303/.0311" endstones
E0.84 .0331/.0335" .0197/.0205" endstones
E1.02 .039/.040" .0085/.010" endstones
E1.27 .0484/.0492" .0087/.0102" endstones
E1.40 .0587/.0591" .0150/.0157" endstones
E1.47 .0580/.0584" .0330/.0370" endstones
E1.58 .0591/.0618" .0087/.0102" endstones
E1.58K .0591/.0622" .0177/.0197" endstones
E1.60 .061/.065" .018/.022" endstones
E2.00 .0748/.0827" .026/.030" endstones
E2.03 .0787/.0795" .0382/.0402" endstones
E2.08 .0819/.0827" .0400/.0420" endstone
E2.49 .0980/.0984" .0190/.0205" endstone
E2.72 .1071/.1079" .0346/.0370" endstone
E3.43 .134/.136" .048/.052" endstone
E3.86 .153/.155" .038/.040" endstone
E4.65 .183/.185" .058/.060" endstone
E4.76 .188/.188" .0332/.0352" endstone
E6.30 .247/.249" .030/.032" endstone
E7.49 .293/.297" .014/.016" endstone
E7.87 .308/.312" .060/.065" endstone

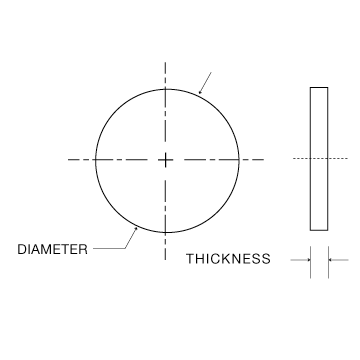

Endstone Cross Section
Swiss Jewel Unset Sapphire Endstones Diagram
