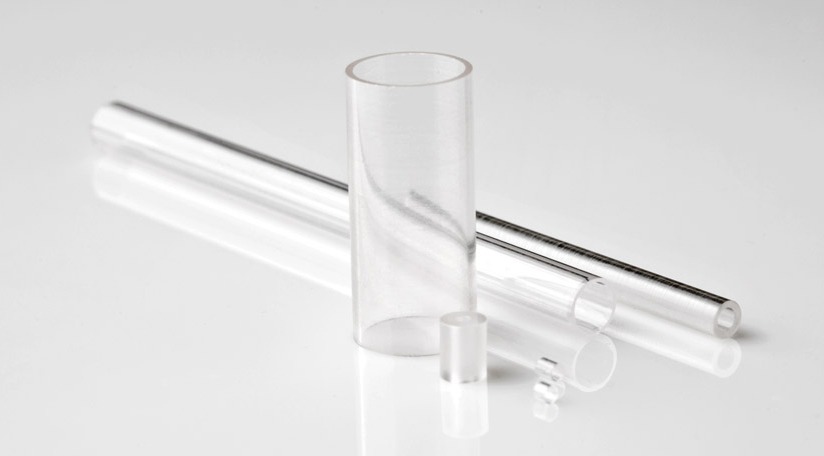

Sapphire Tubes are available in a range of sizes and can be held tighter in tolerance than metal. Stock sizes start with ID .015″ and can be made up to almost any ID and OD. Sapphire Tubes are excellent choice for feed-through applications due to material strength.
Typical Applications: Guides, Insulators, Flow Control, Spacers

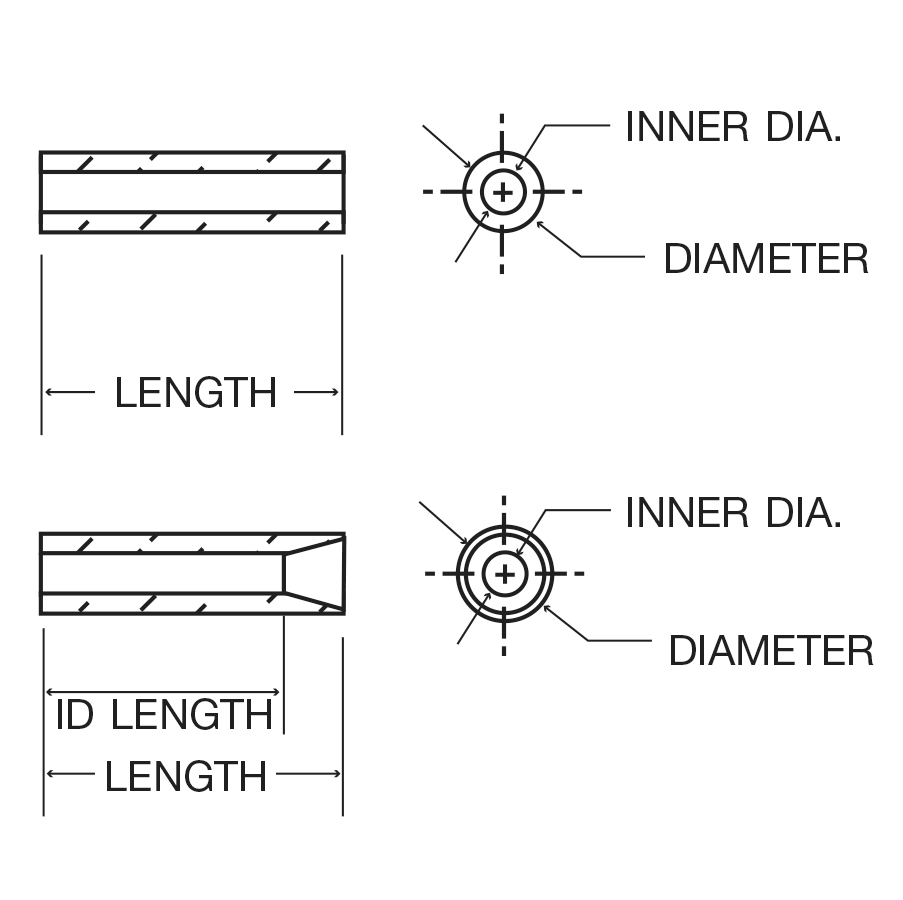

Model | Inside Diameter | Outside Diameter | Length | ID Length |
---|---|---|---|---|
SP-34 | .0319/.0321" | .0493/.0496" | .075/.078" | Straight Ruby Tube |
SP-40 | .062/.064" | .090/.092" | .195/.205" | StraightSapphire Tube |
SP-50 | .014/.016" | .064/.065" | .0550/.0590" | .0374/.0413" Sapphire Tube |
SP-55 | .017/.019" | .064/.065" | .0590/.0630" | .0460/.0500" Sapphire Tube |
SP-60 | .020/.022" | .064/.065" | .0700/.0787" | .0528/.0567" Sapphire Tube |
SP-65 | .024/.026" | .064/.065" | .0760/.0787" | .0610/.0650" Sapphire Tube |
SP-70 | .029/.031" | .064/.065" | .0800/.0839" | .0690/.0728" Sapphire Tube |
SP-75 | .038/.040" | .082/.085" | .0800/.0827" | .067/.070" Sapphire Tube |
SP-78 | .155/.157" | .175/.177" | .123/.127" | Straight Ruby Tube |
We at the Swiss Jewel Company specialize in creating a wide range of custom optical components and custom mechanical components including a variety of shapes - from internal holes and tapers to outer flanges, angles and surface finishes. Contact us (800-922-0118) and we will consult with you to create a custom component that meets all of your specifications.
