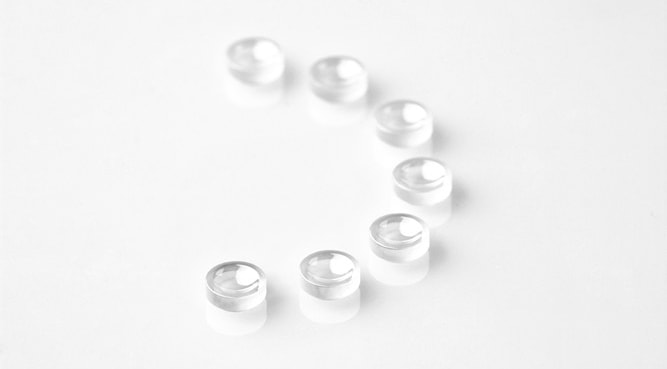

Cup Jewel Bearings -

C3.95

Specifications

ModelC3.95
Outside Diameter.153/.156"
Thickness.058/.063"
Radius.085/.095"
Depth.020/.025"
TypeCup Jewel

A cup jewel is generally used with a semi-spherical pivot or in a design that fits a ball bearing between two cup jewels. Cup jewels are widely used for vertical shaft applications.

  • Meters
  • Compasses
  • Heat Monitors

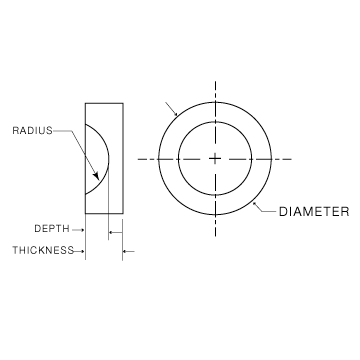

Swiss Jewel Sapphire Cup Jewel Diagram

Not seeing exactly what you need?

We at the Swiss Jewel Company specialize in creating a wide range of custom optical components and custom mechanical components including a variety of shapes - from internal holes and tapers to outer flanges, angles and surface finishes. Contact us and we will consult with you to create a custom component that meets all of your specifications.

Cup Jewel Bearings

$5.35

*Quantity discount pricing will be reflected in cart.
Quantity Price
1 - 10$5.35
11 - 49$4.55
50 - 99$4.25
100 - 249$3.50
250 - 499$3.25
500 - 999$3.10
1000+$2.80
Need more? For a quote on large or custom orders, please contact us.
