Sapphire Hemispherical Lenses

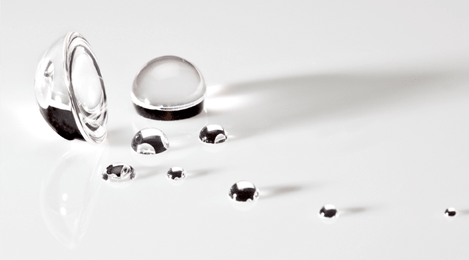

BK-7 Hemisphere Lenses

BK-7 Hemisphere Lenses are ideal for mounting in your instrument and ease of handling.

Typical Applications: Fiber Optics, LEDs

Model Diameter Diameter (mm) Thickness Material
HBK7-0.5 0.197" 0.50 .0098" BK-7
HBK7-1.0 .0394" 1.00 .0197" BK-7
HBK7-1.5 .0590" 1.50 .0295" BK-7

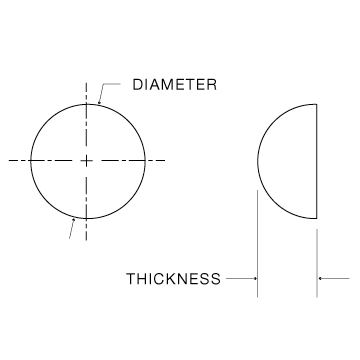

Hemisphere Lens Cross Section
Swiss Jewel Sapphire Ruby Hemispheres Diagram
Request Info

    We use cookies to optimize our website and services. Read more.

    Click to accept cookies(required)

    Not seeing exactly what you need?

    We at the Swiss Jewel Company specialize in creating a wide range of custom optical components and custom mechanical components including a variety of shapes - from internal holes and tapers to outer flanges, angles and surface finishes. Contact us (800-922-0118) and we will consult with you to create a custom component that meets all of your specifications.
